TRANSITION FITTINGS

Integrity Fusion offers a full line of HDPE transition fittings to meet your needs; whether for water, gas, oil, or any other application.

We offer a full line of Standard NPT in Male and Female threads in multiple materials, as well as an impressive line of Heavy Duty transitions which are more durable for heavier duty applications. Threaded, Grooved and Weld End are all available.

Standard NPT Transition Fitting Male

SDR 7, 9 or 11 Pipe. Fittings available in Epoxy Coated Carbon Steel, 304 Stainless Steel and 316 Stainless Steel

Standard NPT Male Transition - SDR 17

Threaded Transition - SDR 17
Nominal SizeABCDEEpoxy Coated Carbon304 Stanless Steel316 Stainless Steel
6” IPS 6.625”1.56” 6.625” 5.00” 8.00” 400634400626400630

Standard NPT Male Transition - SDR 11

Threaded Transition - SDR 11
Nominal SizeABCDEEpoxy Coated Carbon304 Stanless Steel316 Stainless Steel
¾” IPS 1.050” 0.70” 1.050” 1.80” 6.20” 400563 400564400565
1” IPS 1.315” 0.99” 1.315” 2.00” 6.00” 400577 400573400575
1 ¼” IPS 1.660” 1.01” 1.660” 2.60” 5.40” 400573 400579400581
1 ½” IPS 1.900”1.03” 1.900” 2.60” 5.40” 400586 400585400614
2” IPS 2.375” 1.06” 2.375” 3.00” 5.00” 400593 400587400590
3” IPS 3.500” 1.26” 3.500” 4.00” 4.00” 400602 400596400599
4” IPS 4.500” 1.48” 4.500” 4.00” 8.00” 400611 400605400608
6” IPS 6.625” 1.56” 6.625” 5.00” 8.00”

Standard NPT Male Transition - SDR 9

Threaded Transition - SDR 9
Nominal SizeABCDEEpoxy Coated Carbon304 Stanless Steel316 Stainless Steel
1” IPS 1.315” 0.99” 1.315” 2.00” 6.00” 400578 400574400576
1 ¼” IPS 1.660” 1.01” 1.660” 2.60” 5.40” 400584 400580400582
2” IPS 2.375” 1.06” 2.375” 3.00” 5.00” 400595 400589400592
3” IPS 3.500” 1.26” 3.500” 4.00” 4.00” 400604 400598400601
4” IPS 4.500” 1.48” 4.500” 4.00” 8.00” 400613 400607400610
6” IPS 6.625” 1.56” 6.625” 5.00” 8.00”

Standard NPT Male Transition - SDR 7

Threaded Transition - SDR 7
Nominal SizeABCDEEpoxy Coated Carbon304 Stanless Steel316 Stainless Steel
1” IPS 1.315” 0.99”1.315”2.00”6.00”400617400621400616
1 ¼” IPS 1.660”1.01”1.660”2.60”5.40”400620400618400619
2” IPS 2.375” 1.06” 2.375” 3.00” 5.00” 400594400588400591
3” IPS 3.500” 1.26” 3.500” 4.00” 4.00” 400603 400597400600
4” IPS 4.500” 1.48” 4.500” 4.00” 8.00” 400612 400606400609
6” IPS 6.625” 1.56” 6.625” 5.00” 8.00”400635400627400631

Standard NPT Transition Fitting Female

SDR 7, 9 or 11 Pipe. Fittings available in Epoxy Coated Carbon Steel, 304 Stainless Steel and 316 Stainless Steel

Standard NPT Female Transition - SDR 11

Threaded Transition - SDR 11
Nominal SizeABCDEEpoxy Coated Carbon304 Stainless Steel316 Stainless Steel
¾” IPS 1.240” 0.70” 1.050” 2.20” 5.80” 400502 400500400501
1” IPS 1.485” 0.91” 1.315” 2.60” 5.40” 400507 400503400505
1 ¼” IPS 1.900” 0.89” 1.660” 3.40” 4.60” 400513 400509400511
1 ½” IPS 2.250” 0.85” 1.900” 3.40” 4.60” 400516400515
2” IPS 2.750” 1.00” 2.375” 3.40” 4.60” 400523 400517400520
3” IPS 4.144” 1.62” 3.500” 4.38” 3.62” 400532 400526400529
4” IPS 5.160” 1.88” 4.500” 4.62” 7.38” 400541 400535400538

Standard NPT Female Transition - SDR 9

Threaded Transition - SDR 9
Nominal SizeABCDEEpoxy Coated Carbon304 Stainless Steel316 Stainless Steel
1” IPS 1.485” 0.91” 1.315” 2.60” 5.40” 400508 400504400506
1 ¼” IPS 1.900” 0.89” 1.660” 3.40” 4.60” 400514 400510400512
2” IPS 2.750” 1.00” 2.375” 3.40” 4.60” 400525 400519400522
3” IPS 4.144” 1.62” 3.500” 4.38” 3.62” 400534 400528400531
4” IPS 5.160” 1.88” 4.500” 4.62” 7.38” 400543 400537400540

Standard NPT Female Transition - SDR 7

Threaded Transition - SDR 7
Nominal SizeABCDEEpoxy Coated Carbon304 Stainless Steel316 Stainless Steel
1” IPS 1.485” 0.91” 1.315” 2.60” 5.40” 400642400640400641
1 ¼” IPS 1.900” 0.89” 1.660” 3.40” 4.60” 400645400643400644
2” IPS 2.750” 1.00” 2.375” 3.40” 4.60” 400524 400518400521
3” IPS 4.144” 1.62” 3.500” 4.38” 3.62” 400533 400527400530
4” IPS 5.160” 1.88” 4.500” 4.62” 7.38” 400542 400536400539

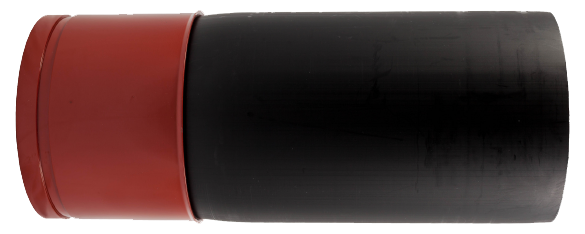

Standard Transition Fitting Grooved

SDR 7, 9 11 or 17 Pipe. Fittings availabe in Epoxy Coated Carbon Steel

Standard Grooved Transition - SDR 17

Threaded Transition - SDR 17
Nominal SizeABCDEpoxy Coated Carbon Steel
6” IPS 6.625” 6.625” 5.00” 8.00”400551
8” IPS 8.625” 8.625” 7.00” 8.00”400555
10” IPS 10.750” 10.750” 8.00” 8.00”400559
12” IPS 12.750” 12.750” 9.00” 9.00”400561

Standard Grooved Transition - SDR 11

Threaded Transition - SDR 11
Nominal SizeABCDEpoxy Coated Carbon Steel
3” IPS 3.500” 3.500” 4.00” 4.00”400544
4” IPS 4.500” 4.500” 4.00” 4.00”400547
6” IPS 6.625” 6.625” 5.00” 8.00”400550
8” IPS 8.625” 8.625” 7.00” 8.00” 400554
10” IPS 10.750” 10.750” 8.00” 8.00” 400558
12” IPS 12.750” 12.750” 9.00” 9.00”400560

Standard Grooved Transition - SDR 9

Threaded Transition - SDR 9
Nominal SizeABCDEpoxy Coated Carbon Steel
3” IPS 3.500” 3.500” 4.00”4.00”400546
4” IPS 4.500” 4.500” 4.00” 4.00”400549
6” IPS 6.625” 6.625” 5.00” 8.00”400553
8” IPS 8.625” 8.625” 7.00” 8.00” 400557
10” IPS 10.750” 10.750” 8.00” 8.00”

Standard Grooved Transition - SDR 7

Threaded Transition - SDR 7
Nominal SizeABCDEpoxy Coated Carbon Steel
3” IPS 3.500” 3.500” 4.00”4.00”400545
4” IPS 4.500” 4.500” 4.00” 4.00”400548
6” IPS 6.625” 6.625” 5.00” 8.00”400552
8” IPS 8.625” 8.625” 7.00” 8.00” 400556

KNOW WHAT YOU ARE LOOKING FOR? CLICK REQUEST A QUOTE BUTTON TO GET STARTED

Heavy Duty Transition Fitting Threaded

Internally and Externally Coated Carbon Steel. Most commonly used in oil and gas markets.

Heavy Duty Threaded Transition - SDR 11

Nominal SizeXYDdZWeightEpoxy Coated Carbon Steel
2" IPS9.36” 5.84” 2.375” 1.943” 2.64” 2.4 lbs.400709
3" IPS8.87” 6.80” 3.500” 2.864” 3.76” 5.2 lbs.400712
4" IPS11.43” 7.39” 4.500” 3.682” 4.78” 9.3 lbs.400715
6" IPS10.54” 7.70”6.625” 5.421” 6.95” 18.3 lbs.400733

Heavy Duty Threaded Transition - SDR 9

Nominal SizeXYDdZWeightEpoxy Coated Carbon Steel
2" IPS9.36” 5.84” 2.375” 1.847” 2.64” 2.6 lbs.400711
3" IPS8.87” 6.80” 3.500” 2.722” 3.76” 5.5 lbs.400714
4" IPS11.43” 7.39” 4.500” 3.500” 4.78” 9.9 lbs.400717
6" IPS10.54” 7.70” 6.625” 5.153” 6.95” 19.6 lbs.400734

Heavy Duty Threaded Transition - SDR 7

Nominal SizeXYDdZWeightEpoxy Coated
Carbon Steel
2" IPS9.36” 5.84” 2.375” 1.697” 2.64” 2.8 lbs.400710
3" IPS8.87” 6.80” 3.500” 2.500” 3.76” 6.0 lbs.400713
4" IPS11.43” 7.39” 4.500” 3.214” 4.78” 10.7 lbs.400716
6" IPS10.54” 7.70” 6.625” 4.733” 6.95” 21.3 lbs.400735

Heavy Duty Transition Fitting Grooved

Internally and Externally Coated Carbon Steel. Most commonly used in oil and gas markets.

Heavy Duty Grooved Transition - SDR 11

Nominal SizeXYDdZWeightEpoxy Coated Carbon Steel
2” IPS 9.30” 5.83” 2.375” 1.943” 2.64” 2.4 lbs.400700
3” IPS 8.80” 6.80” 3.500” 2.864” 3.77” 5.4 lbs.400703
4” IPS 11.57” 7.40” 4.500” 3.682” 4.78” 10.3 lbs.400706

Heavy Duty Grooved Transition - SDR 9

Nominal SizeXYDdZWeightEpoxy Coated Carbon Steel
2” IPS 9.30” 5.83” 2.375” 1.847” 2.64” 2.6 lbs.400702
3” IPS 8.80” 6.80” 3.500” 2.722” 3.77” 5.7 lbs.400705
4” IPS 11.57” 7.40” 4.500” 3.500” 4.78” 10.9 lbs.400708

Heavy Duty Grooved Transition - SDR 7

Nominal SizeXYDdZWeightEpoxy Coated Carbon Steel
2” IPS 9.30” 5.83” 2.375” 1.697” 2.64” 2.8 lbs.400701
3” IPS 8.80” 6.80” 3.500” 2.500” 3.77” 6.2 lbs.400704
4” IPS 11.57” 7.40” 4.500” 3.214” 4.78” 11.7 lbs.400707

Heavy Duty Transition Fitting Weld End

Internally and Externally Coated Carbon Steel. Most commonly used in oil and gas markets.

Heavy Duty Weld End Transition - SDR 17

Nominal SizeXYDdZZ1WeightEpoxy Coated Carbon Steel
6” IPS 13.05” 17.88” 6.625” 5.845” 7.08” 2” 44.2 lbs.400737
8” IPS 11.72” 22.82” 8.625” 7.611” 9.81” 2” 89.1 lbs.400738

Heavy Duty Weld End Transition - SDR 11

Nominal SizeXYDdZZ1WeightEpoxy Coated Carbon Steel
2” IPS 15.52” 13.76” 2.375” 1.943” 3.00” 2” 7.7 lbs. 400718
3” IPS 15.23” 14.84” 3.500” 2.864” 4.03” 2” 13.6 lbs.400721
4” IPS 15.12” 14.92” 4.500” 3.682” 5.28” 2” 22.7 lbs.400724
6” IPS 13.05” 17.88” 6.625” 5.421” 7.08” 2” 46.2 lbs.400727
8” IPS 11.72” 22.82” 8.625” 7.057” 9.81” 2” 92.6 lbs.400730

Heavy Duty MPT Transition - SDR 9

Nominal SizeXYDdZZ1WeightEpoxy Coated Carbon Steel
2” IPS 15.52” 13.76” 2.375” 1.847” 3.00” 2” 7.9 lbs.400720
3” IPS 15.23” 14.84” 3.500” 2.722” 4.03” 2” 13.9 lbs.400723
4” IPS 15.12” 14.92” 4.500” 3.500” 5.28” 2” 23.3 lbs.400726
6” IPS 13.05” 17.88” 6.625” 5.153” 7.08” 2” 47.5 lbs.400729
8” IPS 11.72” 22.82” 8.625” 6.709” 9.81” 2” 94.6 lbs.400732

Heavy Duty Weld End Transition - SDR 7

Nominal SizeXYDdZZ1WeightEpoxy Coated Carbon Steel
2” IPS 15.52” 13.76” 2.375” 1.697” 3.00” 2” 8.1 lbs.400719
3” IPS 15.23” 14.84” 3.500” 2.500” 4.03” 2” 14.4 lbs.400722
4” IPS 15.12” 14.92” 4.500” 3.214” 5.28” 2” 24.1 lbs.400725
6” IPS 13.05” 17.88” 6.625” 4.733” 7.08” 2” 49.2 lbs.400728
8” IPS 11.72” 22.82” 8.625” 6.161” 9.81” 2” 97.6 lbs.400731

KNOW WHAT YOU ARE LOOKING FOR? CLICK REQUEST A QUOTE BUTTON TO GET STARTED

Socket x Brass Transition Male

Socket x Brass Transition - Male

Nominal SizeABCDWeightItem Code
¾" IPS1.61"1.35"1.74"2.89"0.4 lbs.300505
1" IPS2.14"1.77"2.06"2.78"0.6 lbs.300506
1 ¼" IPS2.59"2.20"2.09"3.54"0.8 lbs.300508
1 ½" IPS2.96"2.72"2.21"3.69"1.1 lbs.300509
2" IPS3.67"3.50"2.35"4.12"1.7 lbs.300507

Socket x Brass Transition - Female

Nominal SizeABCDWeightItem Code
2” IPS x 1” CC 2.53” 3.33”2.30” 2.81” 0.8 lbs.400804

Socket x Brass Transition Female

Socket x Brass Transition - Female

Nominal SizeABCDWeightItem Code
¾” IPS x ¾” FPT1.61"1.35"1.74"2.89"0.4 lbs.300500
1” IPS x 1” FPT2.14"1.77"2.06"2.78"0.6 lbs.400800
1 ¼” IPS x 1 ¼” FPT2.59"2.20"2.09"3.54"0.8 lbs.300508
2” IPS x 1” FPT2.53"3.33"2.30"2.81"0.8 lbs.400802
2” IPS x 2” FPT3.67"3.50"2.35"4.12"1.7 lbs.400805

Socket x 316 SS Transition - Female

Nominal SizeABCDWeightItem Code
1” IPS x 1” FPT 2.14” 1.77” 2.06” 2.78” 0.6 lbs.400801
2” IPS x 1” FPT 2.53” 3.33” 2.30” 2.81” 0.8 lbs.400803
2” IPS x 2” FPT 3.67” 3.50” 2.35” 4.12” 1.7 lbs.400806
