MOLDED BUTT FUSION

IntegriFuse Molded Butt Fusion Fittings include both everyday items you expect from a fittings manufacturer, as well as, some unique items that will solve many project and jobsite challenges.

Butt Fusion is defined by McGraw-Hill as “A method of joining plastic pipe, sheet, or other similar forms of a thermoplastic resin wherein the two ends to be joined are heated to the molten state and then rapidly pressed together to form a homogeneous bond.” With HDPE fittings you would use a butt fusion machine, heat both ends of the fittings or pipe and press them together to form a strong bond/fusion and eliminating all potential leaks and joints.

Below is a list of fittings with their size range and SDR listed.
All molded fittings are manufactured to be fully pressure rated to the equivalent SDR of HDPE pipe.

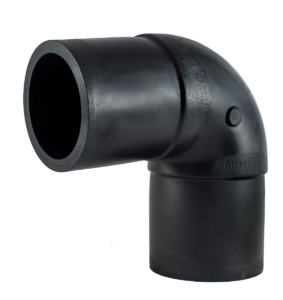

90° Elbows

SDR 17 IPS Sizes 2″ to 12″
SDR 11 IPS Sizes 2″ to 12″
SDR 9 IPS Sizes 2″ to 8″
SDR 7 IPS Sizes 2″ to 8″
SDR 11 DIPS Sizes 4″ to 8″

Molded 90° Elbow

IPS - SDR 17 - 125 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEWeightItem Code
2" IPS4.25"2.95"0.140"2.375"5.44"0.4 lbs.100106
3" IPS5.91"4.06"0.206"3.500"7.66"1.1 lbs.100110
4" IPS6.89"4.53"0.265"4.500"9.14"1.6 lbs.100114
6" IPS9.06"5.63"0.390"6.625"12.37"7.8 lbs.100118
8" IPS11.81"7.20"0.507"8.625"16.13"12.8 lbs.100122
10" IPS13.78"8.27"0.632"10.750"19.15"24.0 lbs.100126
12" IPS14.96"8.46"0.750"12.750"21.33"49.4 lbs.100128

Molded 90˚ Elbow

IPS - SDR 11 - 200 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEWeightItem Code
¾" IPS3.19"2.14"0.095"1.050"3.82"0.1 lbs.100100
1" IPS3.31"2.18"0.120"1.315"4.06"0.2 lbs.100101
1 ¼" IPS3.48"2.15"0.151"1.660"4.41"0.3 lbs.100102
1 ½" IPS3.92"2.37"0.173"1.900"5.00"0.4 lbs.100103
2" IPS4.25"2.95"0.216"2.375"5.44"0.5 lbs.100105
3" IPS5.91"4.06"0.318"3.500"7.66"1.5 lbs.100109
4" IPS6.89"4.53"0.409"4.500"9.14"2.8 lbs.100113
6" IPS9.06"5.63"0.602"6.625"12.37"5.7 lbs.100117
8" IPS11.81"7.20"0.784"8.625"16.13"17.4 lbs.100121
10" IPS13.78"8.27"0.977"10.750"19.15"32.0 lbs.100125
12" IPS14.96"8.46"1.159"12.750"21.33"36.9 lbs.100127

Molded 90˚ Elbow

IPS - SDR 9 - 255 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEWeightItem Code
2" IPS4.25"2.95"0.264"2.375"5.44"0.6 lbs.100108
3" IPS5.91"4.06"0.389"3.500"7.66"1.7 lbs.100112
4" IPS6.89"4.53"0.500"4.500"9.14"3.1 lbs.100116
6" IPS9.06"5.63"0.736"6.625"12.37"9.0 lbs.100120
8" IPS11.81"7.20"0.958"8.625"16.13"19.7 lbs.100124

Molded 90˚ Elbow

IPS - SDR 7 - 335 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEWeightItem Code
2" IPS4.25"2.95"0.339"2.375"5.44"0.8 lbs.100107
3" IPS5.91"4.06"0.500"3.500"7.66"2.0 lbs.100111
4" IPS6.89"4.53"0.643"4.500"9.14"3.2 lbs.100114
6" IPS9.06"5.63"0.946"6.625"12.37"10.9 lbs.100119
8" IPS11.81"7.20"1.232"8.625"16.13"24.1 lbs.100123

Molded 90˚ Elbow

DIPS - SDR 11 - 200 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEWeightItem Code
4" DIPS7.55"4.10"0.436"4.800"10.04"4.0 lbs.100129
6" DIPS9.67"5.10"0.627"6.900"13.34"10.1 lbs.100130
8" DIPS11.58"5.20"0.823"9.050"16.33"19.8 lbs.100131

45° Elbows

SDR 17 IPS Sizes 2″ to 12″
SDR 11 IPS Sizes 2″ to 12″
SDR 9 IPS Sizes 2″ to 8″
SDR 7 IPS Sizes 2″ to 8″
SDR 11 DIPS Sizes 4″ to 8″

Molded 45˚ Elbow

IPS - SDR 17 - 125 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEWeightItem Code
2" IPS3.23"2.64"0.140"2.375"6.38"0.3 lbs.100002
3" IPS4.72"3.86"0.206"3.500"9.33"0.9 lbs.100006
4" IPS5.31"4.21"0.265"4.500"10.63"1.7 lbs.100010
6" IPS6.89"5.35"0.390"6.625"14.09"4.4 lbs.100014
8" IPS8.46"6.54"0.507"8.625"17.48"9.8 lbs.100018
10" IPS10.04"7.64"0.632"10.750"20.94"14.9 lbs.100022
12" IPS10.63"7.80"0.750"12.750"22.64"22.1 lbs.100024

Molded 45˚ Elbow

IPS - SDR 11 - 200 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEWeightItem Code
2" IPS3.23"2.64"0.216"2.375"6.38"0.4 lbs.100001
3" IPS4.72"3.86"0.318"3.500"9.33"1.2 lbs.100005
4" IPS5.31"4.21"0.409"4.500"10.63"2.1 lbs.100009
6" IPS6.89"5.35"0.602"6.625"14.09"6.1 lbs.100013
8" IPS8.46"6.54"0.784"8.625"17.48"12.6 lbs.100017
10" IPS10.04"7.64"0.977"10.750"20.94"21.3 lbs.100021
12" IPS10.63"7.80"1.15912.750"22.64"31.4 lbs.100023

Molded 45˚ Elbow

IPS - SDR 9 - 255 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEWeightItem Code
2" IPS3.23"2.64"0.264"2.375"6.38"0.4 lbs.100004
3" IPS4.72"3.86"0.389"3.500"9.33"1.4 lbs.100008
4" IPS5.31"4.21"0.500"4.500"10.63"2.6 lbs.100012
6" IPS6.89"5.35"0.736"6.625"14.09"7.2 lbs.100016
8" IPS8.46"6.54"0.958"8.625"17.48"14.7 lbs.100020

Molded 45˚ Elbow

IPS - SDR 7 - 335 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEWeight lbs.Item Code
2" IPS3.23"2.64"0.339"2.375"6.38"0.5 lbs.100003
3" IPS4.72"3.86"0.500"3.500"9.33"1.7 lbs.100007
4" IPS5.31"4.21"0.643"4.500"10.63"3.2 lbs.100011
6" IPS6.89"5.35"0.946"6.625"14.09"8.7 lbs.100015
8" IPS8.46"6.54"1.232"8.625"17.48"17.9 lbs.100019

Molded 45˚ Elbow

DIPS - SDR 11 - 200 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEWeight lbs.Item Code
4" DIPS6.05"4.10"0.436"4.800"12.00"3.2 lbs. 100025
6" DIPS7.16"5.10"0.627"6.900"14.56"7.9 lbs. 100026
8" DIPS8.32"5.20"0.823"9.050"17.56"17.4 lbs. 100027

Equal Tees

SDR 17 IPS Sizes 2″ to 12″
SDR 11 IPS Sizes 2″ to 12″
SDR 9 IPS Sizes 2″ to 8″
SDR 7 IPS Sizes 2″ to 8″
SDR 11 DIPS Sizes 4″ to 8″

Molded Equal Tee

IPS - SDR 17 - 125 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEWeightItem Code
3" IPS11.81"5.91"0.206"3.500"3.54"1.4 lbs.100709
4" IPS13.78"6.89"0.264"4.500"3.94"2.8 lbs.100713
6" IPS18.11"9.06"0.390"6.625"4.72"7.7 lbs.100717
8" IPS23.62"11.81"0.507"8.625"5.71"17.5 lbs.100721
10" IPS27.56"13.78"0.632"10.750"6.30"28.6 lbs.100725
12" IPS31.57"15.97"0.750"12.750"7.52"47.1 lbs.100727

Molded Equal Tee

IPS - SDR 11 - 200 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEWeightItem Code
¾" IPS6.38"3.19"0.095"1.050"2.14"0.1 lbs.100700
1" IPS6.62"3.31"0.120"1.315"2.18"0.3 lbs.100701
1 ¼" IPS6.97"3.48"0.151"1.660"2.15"0.4 lbs.100702
1 ½" IPS7.84"3.92"0.173"1.900"2.37"0.5 lbs.100704
2" IPS8.66"4.33"0.216"2.375"2.48"0.7 lbs.100705
3" IPS11.81"5.91"0.318"3.500"3.54"2.2 lbs.100708
4" IPS13.78"6.89"0.409"4.500"3.94"4.1 lbs.100712
6" IPS18.11"9.06"0.602"6.625"4.72"10.6 lbs.100716
8" IPS23.62"11.81"0.784"8.625"5.71"22.5 lbs.100720
10" IPS27.56"13.78"0.977"10.750"6.30"41.1 lbs.100724
12" IPS31.57"15.97"1.159"12.750"7.52"66.3 lbs.100726

Molded Equal Tee

IPS - SDR 9 - 255 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEWeight lbs.Item Code
2" IPS8.66"4.33"0.264"2.375"2.47"0.8 lbs.100707
3" IPS11.81"5.91"0.389"3.500"3.54"2.2 lbs.100711
4" IPS13.78"6.89"0.500"4.500"3.94"4.5 lbs.100715
6" IPS18.11"9.06"0.736"6.625"4.72"11.9 lbs.100719
8" IPS23.62"11.81"0.958"8.625"5.71"25.1 lbs.100723

Molded Equal Tee

IPS - SDR 7 - 335 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEWeight lbs.Item Code
2" IPS8.66"4.33"0.339"2.375"2.47"1.0 lbs.100706
3" IPS11.81"5.91"0.500"3.500"3.54"2.7 lbs.100710
4" IPS13.78"6.89"0.643"4.500"3.94"5.6 lbs.100714
6" IPS18.11"9.06"0.946"6.625"4.72"14.3 lbs.100718
8" IPS23.62"11.81"1.232"8.625"5.71"32.9 lbs.100722

Molded Equal Tee

DIPS - SDR 11 - 200 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEWeight Item Code
4" DIPS15.63"7.82"0.436"4.800"4.10"5.4 lbs. 100728
6" DIPS19.34"9.67"0.627"6.900"5.10"13.2 lbs. 100729
8" DIPS23.15"11.58"0.823"9.050"5.20"100730

KNOW WHAT YOU ARE LOOKING FOR? CLICK REQUEST A QUOTE BUTTON TO GET STARTED

Reducing Tees

SDR 17 IPS Sizes 3″ x 2″ to 12″ x 6″
SDR 11 IPS Sizes 3″ x 2″ to 12″ x 6″
Fully Pressure Rated Molded Reducing Tees

Molded Reducing Tee

IPS - SDR 17 - 125 PSI (Working Pressure at 73.4˚ F)
Nominal SizeL DdL1L2ZWeightItem Code
3" x 2" IPS11.80"3.500"2.375"3.62"2.48"5.90"1.5 lbs. 100801
4" x 2" IPS13.78"4.500"2.375"3.94"2.48"6.89"2.5 lbs.100803
4" x 3" IPS13.78"4.500"3.500"3.94"3.62"6.89"2.7 lbs.100805
6" x 2" IPS18.10"6.625"2.375"4.72"2.48"9.06"6.3 lbs.100807
6" x 3" IPS18.10"6.625"3.500"4.72"3.62"9.06"6.6 lbs.100809
6" x 4" IPS18.10"6.625"4.500"4.72"3.94"9.06"6.7 lbs.100811
8" x 2" IPS23.60"8.625"2.375"5.71"2.48"11.80"16.8 lbs.100813
8" x 3" IPS23.60"8.625"3.500"5.71"3.62"11.80"17.3 lbs.100815
8" x 4" IPS23.60"8.625"4.500"5.71"3.94"11.80"17.9 lbs.100817
8" x 6" IPS23.60"8.625"6.625"5.71"4.72"11.80"18.9 lbs.100819
10" x 4" IPS27.40"10.750"4.500"6.30"3.94"13.78"32.0 lbs.100821
10" x 6" IPS27.40"10.750"6.625"6.30"4.72"13.78"33.1 lbs.100823
10" x 8" IPS27.40"10.750"8.625"6.30"5.71"13.78"34.6 lbs.100825
12" x 6" IPS31.40"12.750"6.625"7.48"4.72"15.95"47.1 lbs.100827
12" x 8" IPS31.40"12.750"8.625"7.48"5.71"15.95"48.9 lbs.100829
12" x 10" IPS31.40"12.750"10.750"7.48"6.30"15.95"53.1 lbs.100831

Molded Reducing Tee

IPS - SDR 11 - 200 PSI (Working Pressure at 73.4˚ F)
Nominal SizeLDdL1L2ZWeightItem Code
3" x 2" IPS11.80"3.500"2.375"3.62"2.48"5.90"1.8 lbs.100800
4" x 2" IPS13.78"4.500"2.375"3.94"2.48"6.89"3.3 lbs.100802
4" x 3" IPS13.78"4.500"3.500"3.94"3.62"6.89"3.6 lbs.100804
6" x 2" IPS18.10"6.625"2.375"4.72"2.48"9.06"8.7 lbs.100806
6" x 3" IPS18.10"6.625"3.500"4.72"3.62"9.06"8.9 lbs.100808
6" x 4" IPS18.10"6.625"4.500"4.72"3.94"9.06"9.4 lbs.100810
8" x 2" IPS23.60"8.625"2.375"5.71"2.48"11.80"21.3 lbs.100812
8" x 3" IPS23.60"8.625"3.500"5.71"3.62"11.80"22.2 lbs.100814
8" x 4" IPS23.60"8.625"4.500"5.71"3.94"11.80"23.3 lbs.100816
8" x 6" IPS23.60"8.625"6.625"5.71"4.72"11.80"24.4 lbs.100818
10" x 4" IPS27.40"10.750"4.500"6.30"3.94"13.78"42.4 lbs.100820
10" x 6" IPS27.40"10.750"6.625"6.30"4.72"13.78"43.6 lbs.100822
10" x 8" IPS27.40"10.750"8.625"6.30"5.71"13.78"46.0 lbs.100824
12" x 6" IPS31.40"12.750"6.625"7.48"4.72"15.95"63.4 lbs.100826
12" x 8" IPS31.40"12.750"8.625"7.48"5.71"15.95"66.9 lbs.100828
12" x 10" IPS31.40"12.750"10.750"7.48"6.30"15.95"68.5 lbs.100830

Lateral Wyes

SDR 17 IPS Sizes 2″ to 8″
SDR 11 IPS Sizes 2″ to 8″
Fully Pressure Rated Molded Lateral Wyes

Molded Lateral Wye

IPS - SDR 17 - 125 PSI (Working Pressure at 73.4° F)
Nominal SizeABCDEWeightItem Code
2" IPS23.74"5.28"13.10"2.375"0.140"2.0 lbs.100901
3" IPS24.56"5.90"13.10"3.500"0.206"4.2 lbs.100903
4" IPS28.50"5.70"20.60"4.500"0.264"7.9 lbs.100905
6" IPS34.65"5.30"26.00"6.625"0.390"26.3 lbs.100907
8" IPS37.40"5.70"27.56"8.625"0.507"44.9 lbs.100909

Molded Lateral Wye

IPS - SDR 11 - 200 PSI (Working Pressure at 73.4° F)
Nominal SizeABCDEWeightItem Code
2" IPS23.74"5.28"13.10"2.375"0.216"2.6 lbs.100900
3" IPS24.56"5.90"13.10"3.500"0.318"5.3 lbs.100902
4" IPS28.50"5.70"20.60"4.500"0.409"10.6 lbs.100904
6" IPS34.65"5.30"26.00"6.625"0.603"32.0 lbs.100906
8" IPS37.40"5.70"27.56"8.625"0.785"54.8 lbs.100908

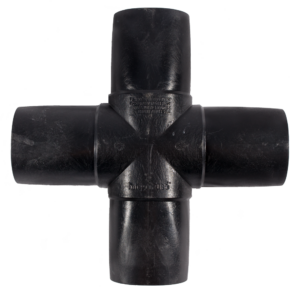

Molded Cross

SDR 17 IPS Sizes 2″ 3″ 4″
SDR 11 IPS Sizes 2″ 3″ 4″
SDR 9 IPS Sizes 2″ 3″ 4″

Molded Cross SDR 17

IPS - 125 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEWeightItem Code
2" IPS8.96"4.45"0.140"2.375"2.64"1.1 lbs.100771
3" IPS11.81"5.90"0.206"3.500"3.54"2.1 lbs.100775
4" IPS13.98"6.89"0.264"4.500"3.94"4.2 lbs.100779

Molded Cross SDR 11

IPS - 200 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEWeightItem Code
2" IPS8.96"4.45"0.216"2.375"2.64"1.3 lbs.100770
3" IPS11.81"5.90"0.318"3.500"3.54"3.3 lbs.100774
4" IPS13.98"6.89"0.409"4.500"3.94"6.2 lbs.100778

Molded Cross SDR 9

IPS - 200 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEWeightItem Code
2" IPS8.96"4.45"0.264"2.375"2.64"1.5 lbs.100773
3" IPS11.81"5.90"0.389"3.500"3.54"3.6 lbs.100777
4" IPS13.98"6.89"0.500"4.500"3.94"7.1 lbs.100781

Reducers

SDR 17 IPS Sizes 3″ x 2″ to 12″ x 10″
SDR 11 IPS Sizes 3″ x 2″ to 12″ x 10″
SDR 11 DIPS Sizes 6″ x 4″ to 8″ x 6″

Molded Reducer

IPS - SDR 17 - 125 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEFGWeightItem Code
3" x 2" IPS7.87"3.94"2.95"0.206"2.375"3.500"0.140"0.5 lbs.100608
4" x 2" IPS9.06"4.33"2.95"0.265"2.375"4.500"0.140"0.8 lbs.100612
4" x 3" IPS9.06"4.33"3.94"0.264"3.500"4.500"0.206"0.9 lbs.100616
6" x 3" IPS11.03"5.06"3.71"0.390"3.500"6.625"0.206"2.1 lbs.100620
6" x 4" IPS11.42"5.12"4.33"0.390"4.500"6.625"0.264"2.4 lbs.100622
8" x 4" IPS12.80"5.99"4.05"0.507"4.500"8.625"0.264"4.2 lbs.100626
8" x 6" IPS12.80"6.10"5.12"0.507"6.625"8.625"0.390"4.9 lbs.100628
10" x 6" IPS14,06"6.16"5.29"0.632"6.625"10.750"0.390"7.7 lbs.100632
10" x 8" IPS14.37"6.25"5.81"0.632"8.625"10.750"0.507"10.2 lbs.100634
12" x 6" IPS16.00"6.95"5.22"0.750"6.625"12.750"0.390"11.3 lbs.
100636
12" x 8" IPS16.54"7.09"6.10"0.750"8.625"12.750"0.507"12.8 lbs.100638
12" x 10" IPS16.54"7.09"6.69"0.750"10.750"12.750"0.632"14.4 lbs.100640

Molded Reducer

IPS - SDR 11 - 200 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEFGWeightItem Code
1" x ¾" IPS4.58"2.17"2.17"0.120"1.050"1.315"0.095"0.1 lbs.100600
1 ¼" x 1" IPS4.66"2.20"2.15"0.151"1.315"1.660"0.120"0.1 lbs.100601
1 ½" x 1" IPS5.12"2.44"2.16"0.173"1.315"1.900"0.120"0.2 lbs.100602
1 ½" x 1 ¼" IPS4.83"2.44"2.17"0.173"1.660"1.900"0.151"0.2 lbs.100603
2" x 1" IPS5.62"2.53"2.13"0.216"1.315"2.375"0.120"0.2 lbs.100604
2" x 1 ¼" IPS5.34"2.53"2.15"0.216"1.660"2.375"0.151"0.3 lbs.100605
2" x 1 ½" IPS5.40"2.53"2.42"0.216"1.900"2.375"0.173"0.3 lbs.100606
3" x 2" IPS7.87"3.94"2.95"0.318"2.375"3.500"0.216"0.7 lbs.100607
4" x 2" IPS9.06"4.33"2.95"0.409"2.375"4.500"0.216"1.2 lbs.100611
4" x 3" IPS9.06"4.33"3.94"0.409"3.500"4.500"0.318"1.4 lbs.100615
6" x 3" IPS11.03"5.06"3.71"0.602"3.500"6.625"0.318"3.2 lbs.100619
6" x 4" IPS11.42"5.12"4.33"0.602"4.500"6.625"0.409"3.5 lbs.100621
8" x 4" IPS12.80"5.99"4.05"0.784"4.500"8.625"0.409"6.3 lbs.100625
8" x 6" IPS12.80"6.10"5.12"0.784"6.625"8.625"0.602"7.3 lbs.100627
10" x 6" IPS14,06"6.16"5.29"0.977"6.625"10.750"0.602"10.3 lbs.100631
10" x 8" IPS14.37"6.25"5.88"0.977"8.625"10.750"0.7984"14.5 lbs.100633
12" x 6" IPS16.00"6.95"5.22"1.159"6.625"12.750"0.602"16.6 lbs.
100635
12" x 8" IPS16.54"7.09"6.10"1.159"8.625"12.750"0.784"19.1 lbs.100637
12" x 10" IPS16.54"7.09"6.69"1.159"10.750"12.750"0.977"21.7 lbs.100639

Molded Reducer

IPS - SDR 9 - 255 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEFGWeightItem Code
3" x 2" IPS7.87"3.94"2.95"0.389"2.375"3.500"0.264"0.7 lbs.100610
4" x 2" IPS9.06"4.33"2.95"0.500"2.375"4.500"0.264"1.2 lbs.100614
4" x 3" IPS9.06"4.33"3.94"0.500"3.500"4.500"0.389"1.4 lbs.100618
6" x 4" IPS11.42"5.12"4.33"0.736"4.500"6.625"0.500"3.5 lbs.100624
8" x 6" IPS12.80"6.10"5.12"0.958"6.625"8.625"0.736"7.3 lbs.100630

Molded Reducer

DIPS - SDR 11 - 200 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABC DEFGWeightItem Code
6" x 4" DIPS11.41"5.10"4.33"0.627"4.800"6.900"0.436"4.1 lbs. 100641
8" x 6" DIPS12.79"6.10"5.12"0.823"6.900"9.050"0.627"7.8 lbs. 100642

Molded Reducer

IPS - SDR 7 - 335 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEFGWeightItem Code
3" x 2" IPS7.87"3.94"2.95"0.500"2.375"3.500"0.339"1.6 lbs.100609
4" x 2" IPS9.06"4.33"2.95"0.643"2.375"4.500"0.339"3.0 lbs.100613
4" x 3" IPS9.06"4.33"3.94"0.643"3.500"4.500"0.500"3.3 lbs.100617
6" x 4" IPS11.42"5.12"4.33"0.946"4.500"6.625"0.643"5.2 lbs.100623
8" x 6" IPS12.80"6.10"5.12"1.232"6.625"8.625"0.946"8.4 lbs.100629

Molded Reducer

IPS - SDR 11 - 200 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEFGWeightItem Code
6" x 4" DIPS11.41"5.10"4.33"0.627"4.800"6.900"0.436"4.1 lbs.100641
8" x 6" DIPS12.79"6.10"5.12"0.823"6.900"9.050"0.627"7.8 lbs.100642

KNOW WHAT YOU ARE LOOKING FOR? CLICK REQUEST A QUOTE BUTTON TO GET STARTED

Caps

IntegriFuse HDPE Molded Butt Fusion Cap

SDR 17 IPS Sizes 2″ to 8″
SDR 11 IPS Sizes 2″ to 8″
Fully Pressure Rated Molded Lateral Wyes

Molded Cap

IPS - SDR 17 - 125 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDWeightItem Code
2" IPS3.23"0.140"2.375"2.52"0.1 lbs.100306
3" IPS4.72"0.206"3.500"3.70"0.4 lbs.100310
4" IPS5.31"0.264"4.500"3.98"0.7 lbs.100314
6" IPS6.89"0.390"6.625"4.84"2.0 lbs.100318
8" IPS8.66"0.507"8.625"5.83"4.2 lbs.100322
10" IPS9.84”0.633”10.750”6.30”7.5 lbs.100326
12" IPS11.77”0.750”12.750”7.52”12.4 lbs.100328

Molded Cap

IPS - SDR 11 - 200 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDWeightItem Code
¾" IPS2.55"0.095"1.050"2.18"0.1 lbs.100300
1" IPS2.64"0.120"1.315"2.18"0.1 lbs.100302
1 ¼" IPS2.77"0.151"1.660"2.18"0.1 lbs.100303
1 ½" IPS3.10"0.173"1.900"2.42"0.5 lbs.100304
2" IPS3.23"0.216"2.375"2.52"0.8 lbs.100305
3" IPS4.72"0.318"3.500"3.70"0.9 lbs.100309
4" IPS5.31"0.409"4.500"3.98"1.1 lbs.100313
6" IPS6.89"0.603"6.625"4.84"2.9 lbs.100317
8" IPS8.66"0.785"8.625"5.83"6.3 lbs.100321
10" IPS9.84”0.978”10.750”6.30”10.9 lbs.100325
12" IPS11.77”1.160”12.750”7.52”18.4 lbs.100327

Molded Cap

IPS - SDR 9 - 255 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDWeight lbs.Item Code
2" IPS3.23"0.264"2.375"2.52"0.3 lbs.100308
3" IPS4.72"0.389"3.500"3.70"0.8 lbs.100312
4" IPS5.31"0.500"4.500"3.98"2.4 lbs.100316
6" IPS6.89"0.736"6.625"4.84"2.8 lbs.100320
8" IPS8.66"0.958"8.625"5.83"5.6 lbs.100324

Molded Cap

IPS - SDR 7 - 335 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDWeightItem Code
2" IPS3.23"0.339"2.375"2.52"0.3 lbs.100307
3" IPS4.72"0.500"3.500"3.70"1.0 lbs.100311
4" IPS5.31"0.643"4.500"3.98"2.4 lbs.100315
6" IPS6.89"0.946"6.625"4.84"2.8 lbs.100319
8" IPS8.66"1.232"8.625"5.83"5.6 lbs.100323

Flange Adapters

IntegriFuse HDPE Molded Butt Fusion Flange Adapter

SDR 17 IPS Sizes 2″ to 36″
SDR 11 IPS Sizes 2″ to 36″
SDR 9 IPS Sizes 2″ to 12″
SDR 7 IPS Sizes 2″ to 8″
SDR 11 DIPS Sizes 4″ to 12″

Flange Adapter

IPS - SDR 17 - 125 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEWeightItem Code
2" IPS2.375"3.94"0.55"6.10"0.140"0.4 lbs.100401
3" IPS3.500"5.00"0.67"6.10"0.206"0.8 lbs.100405
4" IPS4.500"6.61"0.79"6.10"0.265"1.6 lbs.100409
6" IPS6.625"8.50"1.02"8.07"0.390"3.4 lbs.100413
8" IPS8.625"10.63"1.02"10.67"0.507"6.4 lbs.100417
10" IPS10.750"12.99"1.18"11.50"0.632"10.1 lbs.100421
12" IPS12.750"15.75"1.38"10.83"0.750"14.6 lbs.100424
14" IPS14,000"17.50"1.70"11.00"0.824"26.0 lbs.100427
16" IPS16.000"20.00"1.90"12.00"0.941"37.0 lbs.100429
18" IPS18.000"21.10"2.10"12.00"1.059"43.0 lbs.100431
20" IPS20.000"23.50"2.30"12.00"1.176"56.0 lbs.100433
24" IPS24.000"27.90"2.90"14.00"1.412"79.0 lbs.100437
28" IPS28.000"32.30"3.23"14.00"1.647"84.0 lbs.100439
30" IPS30.000"34.30"3.46"14.00"1.765"87.0 lbs.100441
32" IPS32.000"34.30"3.69"14.00"1.882"106.0 lbs.100443
36" IPS36.000"40.80"4.16"14.00"2.118"141.0 lbs.100445

Flange Adapter

IPS - SDR 11 - 200 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEWeightItem Code
2" IPS2.375"3.94"0.55"6.10"0.216"0.5 lbs.100400
3" IPS3.500"5.00"0.67"6.10"0.318"1.0 lbs.100404
4" IPS4.500"6.61"0.79"6.10"0.409"1.9 lbs.100408
6" IPS6.625"8.50"1.02"8.07"0.602"4.3 lbs.100412
8" IPS8.625"10.63"1.02"10.67"0.784"8.5 lbs.100416
10" IPS10.750"12.99"1.18"11.50"0.977"14.6 lbs.100420
12" IPS12.750"15.75"1.38"10.83"1.159"20.0 lbs.100423
14" IPS14,000"17.50"1.70"11.00"1.273"26.0 lbs.100426
16" IPS16.000"20.00"1.90"12.00"1.455"37.0 lbs.100428
18" IPS18.000"21.10"2.10"12.00"1.636"43.0 lbs.100430
20" IPS20.000"23.50"2.30"12.00"1.818"56.0 lbs.100432
24" IPS24.000"27.90"2.90"14.00"2.182"94.0 lbs.100436
28" IPS28.000"32.30"3.23"14.00"2.545"129.0 lbs.100438
30" IPS30.000"34.30"3.46"14.00"2.727"134.0 lbs.100440
32" IPS32.000"34.30"3.69"14.00"2.909"163.0 lbs.100442
36" IPS36.000"40.80"4.16"14.00"3.273"218.0 lbs.100444

Flange Adapter

IPS - SDR 9 - 255 PSI (Working Pressure at 73.4˚ F)
Nominal SizeA BCDEWeightItem Code
2" IPS2.375"3.94"0.55"6.10"0.264"0.6 lbs.100403
3" IPS3.500"5.00"0.67"6.10"0.389"1.1 lbs.100407
4" IPS4.500"6.61"0.79"6.10"0.500"2.1 lbs.100411
6" IPS6.625"8.50"1.02"8.07"0.736"4.8 lbs.100415
8" IPS8.625"10.63"1.02"10.67"0.958"9.8 lbs.100419
10" IPS10.750"12.99"1.18"11.50"1.194"17.0 lbs.100422
12" IPS12.750"15.75"1.38"10.83"1.417"22.5 lbs.100425

Flange Adapter

IPS - SDR 7 - 335 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEWeightItem Code
2" IPS2.375"3.94"0.55"6.10"0.339"0.7 lbs.100402
3" IPS3.500"5.00"0.67"6.10"0.500"1.4 lbs.100406
4" IPS4.500"6.61"0.79"6.10"0.643"2.5 lbs.100410
6" IPS6.625"8.50"1.02"8.07"0.946"5.9 lbs.100414
8" IPS8.625"10.63"1.02"10.67"1.232"12.7 lbs.100418

Flange Adapter

DIPS - SDR 11 - 200 PSI (Working Pressure at 73.4˚ F)
Nominal SizeABCDEWeightItem Code
4" DIPS4.800"6.56"0.68"6.00"0.436"1.8 lbs.100446
6" DIPS6.900"8.60"1.00"8.00"0.627"4.4 lbs. 100447
8" DIPS9.050"10.72"1.25"9.00"0.823"8.4 lbs. 100448
10" DIPS11.100"1.009"100449
12" DIPS13.200"15.94"1.81"10.78"1.200"21.2 lbs100450

SDR 11 Backup Rings

Size range from 2″ IPS to 36″ IPS  and 4″ DIPS to 12″ DIPS in stock
Red Epoxy Coating on IPS SDR 11 Backup Rings
Light Blue Epoxy Coating on DIPS SDR 11 Backup Rings

Fusion Bonded Epoxy Coated Ductile Iron
ASTM A536 Materials Standard
Made according to ANSI B16.5 Class 150

Epoxy Coated Backup Ring

IPS - SDR 11 - 200 PSI
Nominal SizeSDR ODIDThickness# of Bolt
Holes
Bolt Hole
Diameter
WeightItem Code
2" IPS116.00"2.60"0.50"40.75"1.8 lbs.100200
3" IPS117.50"3.75"0.53"40.75"2.7 lbs.100202
4" IPS119.00"4.75"0.55"80.75"3.8 lbs.100204
6" IPS1111.00"6.88"0.63"80.88"5.1 lbs.100206
8" IPS1113.50"8.88"0.85"80.88"10.0 lbs.100208
10" IPS1116.00"11.00"0.98"121.00"13.8 lbs.100210
12" IPS1119.00"13.15"1.25"121.00"23.2 lbs.100212
14" IPS1121.00"14.40"1.38"121.13"36.0 lbs.100214
16" IPS1123.50"16.40"1.65"161.13"44.0 lbs.100216
18" IPS1125.00"18.40"1.67"161.25"49.5 lbs.100218
20" IPS1127.50"20.50"1.81"201.25"61.0 lbs.100220
24" IPS1132.00"24.50"2.17"201.38"89.0 lbs.100222
28" IPS1136.50"28.60"2.50"281.38"124.0 lbs.100224
30" IPS1138.75"30.60"2.60"281.38"148.0 lbs.100226
32" IPS1141.75"32.60"2.75"281.63"178.0 lbs.100227
36" IPS1146.00"36.60"3.15"321.3."238.0 lbs.100228

Epoxy Coated Backup Ring

Nominal SizeSDR ODIDThickness# of Bolt
Holes
Bolt Hole
Diameter
WeightItem Code
4" DIPS119.00"5.00"0.55"80.75"3.8 lbs.100260
6" DIPS1111.00"7.10"0.63"80.88"5.5 lbs.100261
8" DIPS1113.50"9.20"0.85"80.88"9.5 lbs.100262
10" DIPS1116.00"11.30"0.98"121.00"14.0 lbs.100263
12" DIPS1119.00"13.45"1.25"121.00"24.0 lbs.100264

SDR 7 Backup Rings

Size range from 2″ IPS to 24″ IPS and 4″ DIPS to 12″ DIPS in stock
Green Epoxy Coating on SDR 7 IPS Backup Rings
Dark Blue Epoxy Coating on SDR 7 DIPS Backup Rings

Fusion Bonded Epoxy Coated Ductile Iron
ASTM A536 Materials Standard
Made according to ANSI B16.5 Class 150

Epoxy Coated Backup Ring

IPS - SDR 7 - 335 PSI | SDR 9 - 255 PSI
Nominal SizeSDR ODIDThickness# of Bolt HolesBolt Hole DiameterWeightItem Code
2" IPS76.00"2.60"0.75"40.75"2.8 lbs.100201
3" IPS77.50"3.75"0.85"40.75"4.0 lbs.100203
4" IPS79.00"4.75"0.92"80.75"5.6 lbs.100205
6" IPS711.00"6.88"1.00"80.88"8.0 lbs.100207
8" IPS713.50"8.88"1.12"80.88"12.5 lbs.100209
10" IPS716.00"11.00"1.22"121.00"16.8 lbs.100211
12" IPS719.00"13.15"1.48"121.00"26.8 lbs.100213
14" IPS721.00"14.40"1.62"121.13"38.5 lbs.100215
16" IPS723.50"16.40"1.82"161.13"49.0 lbs.100217
18" IPS725.00"18.40"1.82"161.25"52.0 lbs.100219
20" IPS927.50"20.50"2.00"201.25"67.0 lbs.100221
24" IPS932.00"24.50"2.18"201.38"96.0 lbs.100223

Epoxy Coated Backup Ring

DIPS - SDR 7 - 335 PSI
Nominal SizeSDR ODIDThickness# of Bolt HolesBolt Hole DiameterWeightItem Code
4" DIPS79.00"5.00"0.94"80.75"5.8 lbs.100229
6" DIPS711.00"7.10"1.00"80.88"8.5 lbs.100230
8" DIPS713.50"9.20"1.12"80.88"12.5 lbs.100231
10" DIPS716.00"11.30"1.19"121.00"17.0 lbs.100232
12" DIPS719.00"13.45"1.50"121.00"29.0 lbs.100233

Stainless Steel Backup Rings

Size range from 2″ IPS to 24″ IPS and 4″ DIPS to 12″ DIPS in stock
316 Stainless Steel in SDR 11

ASTM A351CF8M
Made according to ANSI B16.5 Class 150

316SS Backup Ring

IPS - SDR 11 - 200 PSI
Nominal SizeSDRODIDThickness# of Bolt HolesBolt Hole DiameterWeight lbs.Item Code
2" IPS116.00"2.64"0.45"40.75"1.7 lbs.100241
3" IPS117.50"3.75"0.53"40.75"2.6 lbs.100242
4" IPS119.00"4.80"0.55"80.75"3.7 lbs.100243
6" IPS1111.00"6.90"0.63"80.88"5.6 lbs.100244
8" IPS1113.50"8.90"0.85"80.88"10.0 lbs.100245
10" IPS1116.00"11.00"0.99"121.00"14.5 lbs.100246
12" IPS1119.00"13.15"1.26"121.00"25.0 lbs.100247
14" IPS1121.00"14.42"1.38"121.13"35.0 lbs.100248
16" IPS1123.50"16.47"1.57"161.13"45.0 lbs.100249
18" IPS1125.00"18.50"1.65"161.25"51.0 lbs.100250
20" IPS1127.50"20.50"1.85"201.25"64.0 lbs.100252
24" IPS1132.00"24.50"2.18"201.38"100.0 lbs.100253
28” IPS (1)1136.42"28.66"2.76"281.42"277.8 lbs.100265
30” IPS (1)1138.78"30.67"2.87"281.42"327.5 lbs.100266
32” IPS (1)1141.73"32.52"281.63"204.6 lbs.100267
34” IPS (1)1143.74"34.53"321.63"224.9 lbs.
36” IPS (1)1146.06"36.81"3.50"321.65"534.9 lbs.100268

316SS Backup Ring

DIPS - SDR 11 - 200 PSI
Nominal SizeSDRODIDThickness# of Bolt HolesBolt Hole DiameterWeight lbs.Item Code
4" DIPS119.00"5.00"0.55"80.75"3.8 lbs.100243
6" DIPS1111.00"7.10"0.63"80.88"5.5 lbs.100244
8" DIPS1113.50"9.20"0.85"80.88"10.0 lbs.100245
10" DIPS1116.00"11.30"0.99"121.00"15.0 lbs.100246
12" DIPS1119.00"13.45"1.25"121.00"25.0 lbs.100247

KNOW WHAT YOU ARE LOOKING FOR? CLICK REQUEST A QUOTE BUTTON TO GET STARTED

MJ Adapters

SDR 11 IPS Sizes 2″ to 24″
SDR 9 IPS Sizes 2″ to 12″
SDR 11 DIPS Sizes 4″ to 24″
SDR 9 DIPS Sizes 4″ to 12″
All Sizes available both with or without the Stainless Steel Stiffener Insert

MJ Adapter

IPS - SDR 9 - 255 PSI | SDR 11 - 200 PSI
Nominal SizeSDRABCDWeightItem Code
With SS / Without
2" IPS98.00"2.375"2.34"2.375"2.0 lbs.100503 / 100501
2" IPS118.00"2.375"2.34"2.375"1.9 lbs.100502 / 100500
3" IPS99.00"3.500"2.34"3.960"2.4 lbs.100507 / 100505
3" IPS119.00"3.500"2.34"3.960"2.1 lbs.100506 / 100504
4" IPS910.25"4.500"2.34"4.800"3.4 lbs.100515 / 100513
4" IPS1110.25"4.500"2.34"4.800"3.0 lbs.100514 / 100512
6" IPS911.31"6.625"2.34"6.900"7.0 lbs.100523 / 100521
6" IPS1111.31"6.625"2.34"6.900"6.3 lbs.100522 / 100520
8" IPS911.94"8.625"2.34"9.050"12.7 lbs.100531 / 100529
8" IPS1111.94"8.625"2.34"9.050"11.1 lbs.100530 / 100528
10" IPS913.56"10.750"2.34"11.100"20.9 lbs.100539 / 100537
10" IPS1113.56"10.750"2.34"11.100"18.1 lbs.100538 / 100536
12" IPS913.00"12.750"2.34"13.200"28.0 lbs.100547 / 100545
12" IPS1113.00"12.750"2.34"13.200"24.2 lbs.100546 / 100544
14" IPS1113.00"14.000"1.75"15.300"35.3 lbs.100551 / 100550
16" IPS1113.00"16.000"1.75"17.400"40.8 lbs.100555 / 100554
18" IPS1113.00"18.000"1.75"19.500"51.1 lbs.100559 / 100558
20" IPS1115.22"20.000"2.54"21.600"72.8 lbs.100563 / 100562
24" IPS1116.73"24.000"2.67"25.800"109.8 lbs.100567 / 100566

MJ Adapter

DIPS - SDR 9 - 255 PSI | SDR 11 - 200 PSI
Nominal SizeSDRABCDWeightItem Code
With SS / Without
4" DIPS910.25"4.800"2.34"4.800"3.5 lbs.100511 / 100509
4" DIPS1110.25"4.800"2.34"4.800"3.2 lbs.100510 / 100508
6" DIPS911.31"6.900"2.34"6.900"7.7 lbs.100519 / 100517
6" DIPS1111.31"6.900"2.34"6.900"6.8 lbs.100518 / 100516
8" DIPS911.94"9.050"2.34"9.050"13.0 lbs.100527 / 100525
8" DIPS1111.94"9.050"2.34"9.050"11.3 lbs.100526 / 100524
10" DIPS913.56"11.100"2.34"11.100"22.1 lbs.100535 / 100533
10" DIPS1113.56"11.100"2.34"11.100"19.9 lbs.100534 / 100532
12" DIPS913.00"13.200"2.34"13.200"30.2 lbs.100543 / 100541
12" DIPS1113.00"13.200"2.34"13.200"25.9 lbs.100542 / 100540
14" DIPS1114.00"15.300"2.22"15.300"33.1 lbs.100549 / 100548
16" DIPS1114.00"17.400"2.22"17.400"44.1 lbs.100553 / 100552
18" DIPS1115.22"19.500"2.63"19.500"66.2 lbs.100557 / 100556
20" DIPS1115.22"21.600"2.63"21.600"94.8 lbs.100561 / 100560
24" DIPS1115.22"25.800"2.63"25.800"132.3 lbs.100565 / 100564

MJ Accessory Kits

Sizes 2″ to 24″
Includes a ductile iron gland, gasket and bolts
Works with both IPS and DIPS

Fusion Bonded Epoxy Coated Ductile Iron Gland
SBR (Styrene-Butadiene Rubber) Gasket
Steel T-Bolts
ASTM A536 Materials Standard
Made according to ANSI/AWWA C-153 (2″ to 12″) and C-110 (14″ to 24″)

MJ Accessory Kits

Nominal SizeTypeBolt SizeNumber of BoltsWeightItem Code
2"C-1535/8" x 5"26.1 lbs.100580
3"C-1535/8" x 4 ½"46.7 lbs.100581
4"C-153¾" x 4 ½"47.4 lbs.100582
6"C-153¾" x 5"611.2 lbs.100583
8"C-153¾" x 6"612.4 lbs.100584
10"C-153¾" x 6"817.6 lbs.100585
12"C-153¾" x 6"819.5 lbs.100586
14"C-110¾" x 7"1024.7 lbs.100587
16"C-110¾" x 7"1230.8 lbs.100588
18"C-110¾" x 7"1241.0 lbs.100589
20"C-110¾" x 7"1450.9 lbs.100590
24"C-110¾" x 7"1668.1 lbs.100591

KNOW WHAT YOU ARE LOOKING FOR? CLICK REQUEST A QUOTE BUTTON TO GET STARTED
